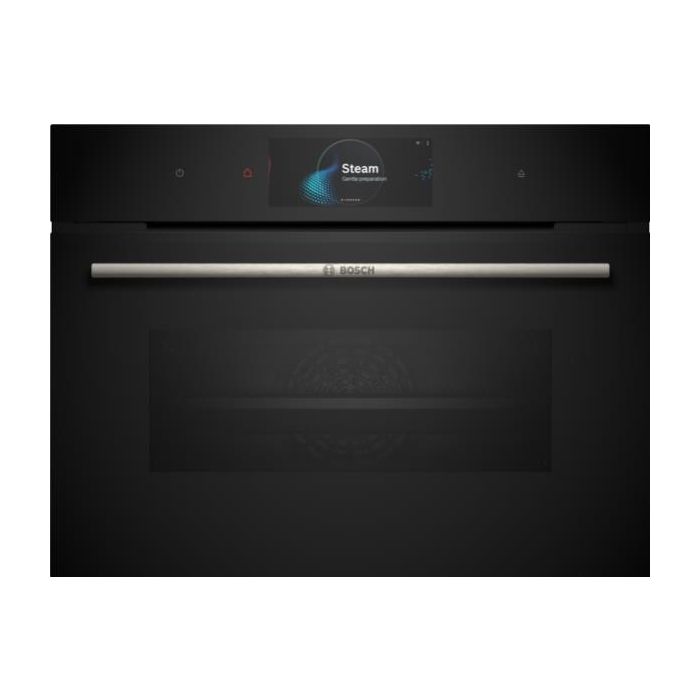

Bosch CSG7584B1, Built-in compact oven with steam function
- Appliance Current (A)16
- Appliance Frequency (Hz)50; 60
- Appliance Voltage (V)220-240
- Construction TypeBuilt-In
- Control Panel / AppliancesTFT
- Control Panel MaterialGlass
- Cooker / Oven Control PanelTFT
- Cooker / Oven GuidesGrids
- Cooker / Oven Time OptionsStart and Stop
- Cooker / Oven Timer ControlElectronic
- Cooking Methods4D Hotair, Air fry, Bottom heat, Conventional heat, Conventional heat gentle, Defrost, Dehydrate, fermentation, Full width grill, Half width grill, Hotair gentle, Hot air grilling, Intensive heat, low temperature cooking, Pizza setting, pre-heating, Regeneration, Steam 100%, warming
- Cooking Usable Volume47
- Cord Length150
- Depth with Door 90 Degrees920
- Door ColourBlack
- Door Hinge TypeDrop down
- Door MaterialGlass
- Energy Efficiency ClassA+
- Included Accessories1 x grid, 1 x universal pan, 1 x steam container, punched, size XL, 1 x steam container, punched, size M, 1 x steam container, unpunched, size M
- Installation TypeBuilt-In
- Integrated Cleaning SystemCatalytic all sides, Hydrolytic
- Interior LightYes
- Languages DisplayedAlbanian, Bulgarian, Chinese, Chinese trad., Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Latvian, Lithuanian, Macedonian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Slovakian, Slovenian, Spanish, Swedish, Turkish, Ukrainian
- Max Niche Height455
- Max Niche Width568
- Microwave Cavity Capacity47
- Microwave Cavity MaterialEnamelled steel
- Min Niche Height450
- Min Niche Width560
- Niche Depth550
- Number of Cooking Programs3
- Number of Lights1
- Plug TypeGardy plug w/ earthing
- Position of Interior Lightstop
- Safety FeaturesChild-proof lock
- Steam Generator LocationOutside cavity
- Type of Control / AppliancesElectronic
- Type of Control SettingsTFT - touch control;Via app
- Type of LightLED light
- Warranty Duration2
- Water Tank Volume1
- Manufacturer Guarantee1 year
Features
- Compact steam oven with 23 heating methods: conventional top and bottom heat, full width variable grill, half width grill, bottom heat, intensive heat, low temperature cooking, plate warming, dehydrate, keep warm, Conventional heat gentle, Steam cooking, reheating with steam, Dough proving, defrost, Hot air grilling, warming, 4D Hot air, Top/bottom heat
- Temperature range 30 °C - 250 °C
- 120 °C
- Cavity volume: 47 litre capacity
- 3 shelf positions
- Available as an additional accessory
- Touch controls With steel trim
- Digital Control Ring
- Cavity inner surface: enamel anthracite
- EcoClean Direct: coating of ceiling, back panel, side liners
- hydrolyse program, EcoClean Direct programme
- Full glass inner door
- Oven Assistant with Voice Control
- BE63
- Electronic clock timer
- Digital temperature display with proposal
- Actual temperature display
- Heating-up indicator
- Temperature probe
- Drop down door, SoftClose, SoftOpen
- BoschAssist
- yes
- yes
- Fast pre-heating function
- steam boost - add for 3min intensive steam with a touch of a button.
- There are different steam intensities selectable: steam level high, steam level middle, steam level low
- LED light, Light on/off when oven door opened/closed
- Water tank empty indicator
- Location of water tank: Outside cavity
- Integral cooling fan
- Home Connect ready
- 1 x steam container, punched, size M, 1 x steam container, punched, size XL, 1 x steam container, unpunched, size M, 1 x grid, 1 x universal pan
- Maximum window temperature 40° C
- Triple glazed door glazed CoolTouch door
- Control panel lock
- Automatic safety switch off
- Residual heat indicator
- Start button
- Door contact switch
- Power cord length 150 cm Cable length
- Nominal voltage: 220 - 240 V
- Total connected load electric: 3.3 KW
- Energy efficiency rating (acc. EU Nr. 65/2014): A+
- Energy consumption per cycle in conventional mode: 0.73 kWh
- Energy consumption per cycle in fan-forced convection mode: 0.61 kWh
- Number of cavities: Main cavity
- Heat source: electrical
- Cavity volume: 47 litre capacity
- Appliance dimension (hxwxd): 455 mm x 594 mm x 548 mm
- Niche dimension (hxwxd): 450 mm - 455 mm x 560 mm - 568 mm x 550 mm
- “For-details-on-installation-and-ventilation requirements – please refer to the installation manual prior to fitting.”
| Manufacturer | Bosch |
|---|---|
| Model Number | CSG7584B1 |
| Appliance Current (A) | 16 |
| Safety Features | Child-proof lock |
| Min Niche Height | 450 |
| Max Niche Height | 455 |
| Min Niche Width | 560 |
| Max Niche Width | 568 |
| Niche Depth | 550 |
| Interior Light | Yes |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Plug Type | Gardy plug w/ earthing |
| Depth with Door 90 Degrees | 920 |
| Cord Length | 150 |
| Microwave Cavity Material | Enamelled steel |
| Cooker / Oven Guides | Grids |
| Integrated Cleaning System | Catalytic all sides, Hydrolytic |
| Microwave Cavity Capacity | 47 |
| Cooking Usable Volume | 47 |
| Number of Lights | 1 |
| Number of Cooking Programs | 3 |
| Warranty Duration | 2 |
| Cooker / Oven Timer Control | Electronic |
| Cooker / Oven Control Panel | TFT |
| Cooker / Oven Time Options | Start and Stop |
| Control Panel / Appliances | TFT |
| Control Panel Material | Glass |
| Position of Interior Lights | top |
| Door Colour | Black |
| Door Material | Glass |
| Included Accessories | 1 x grid, 1 x universal pan, 1 x steam container, punched, size XL, 1 x Steam container, punched, size M, 1 x Steam container, unpunched, size M |
| Steam Generator Location | Outside cavity |
| Water Tank Volume | 1 |
| Energy Efficiency Class | A+ |
| Type of Control / Appliances | Electronic |
| Type of Control Settings | TFT - touch control;Via app |
| Construction Type | Built-In |
| Installation Type | Built-In |
| Type of Light | LED light |
| Door Hinge Type | Drop down |
| Is On Display | false |
| Is Soft Bundle | No |
| Expired Status | No |
