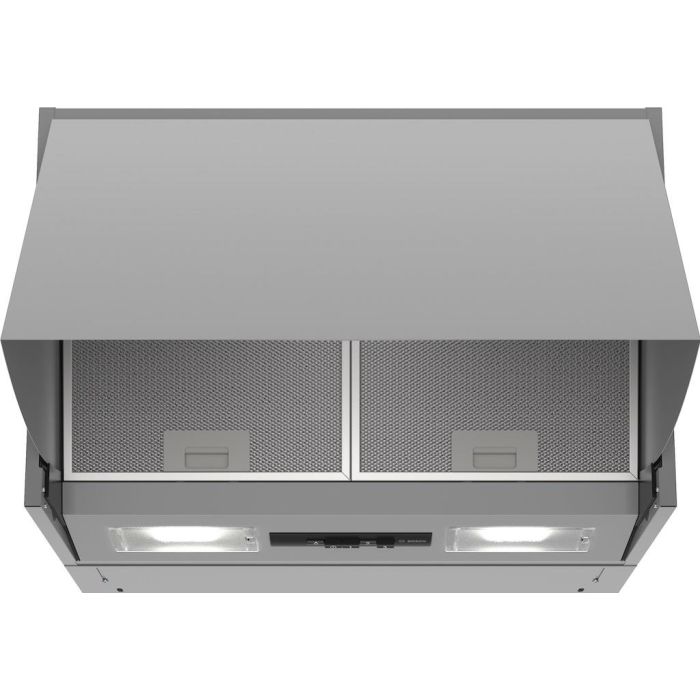

Bosch DEM66AC00B, Integrated cooker hood
Please Contact Us
- Air Flow Boost0.0
- Appliance Current (A)10
- Appliance Frequency (Hz)50; 60
- Appliance Voltage (V)220-240
- Approval CertificatesCE
- Construction TypeBuilt-In
- Cord Length150
- Energy Efficiency ClassB
- Fluid Dynamic Efficiency25.4
- Fluid Dynamic Efficiency ClassB
- Grease Filter MaterialWashable aluminium
- Grease Filter TypeKassette
- Grease Filtering Efficiency76.0
- Grease Filtering Efficiency ClassC
- Installation TypeBuilt-In
- Lighting Efficiency29.0
- Lighting Efficiency ClassA
- Max Air Flow625
- Max Output Air Extraction625
- Max Output Recirculating Air416
- Min Air Flow256.0
- Motor LocationIntegrated motor in hood body
- No Return Air Flow FlapYes
- Noise Level70
- Number of Lights2
- Number of Motors1
- Operating ModeConvertible
- Plug TypeGB plug
- Sound Power Max Speed70
- Sound Power Min Speed49
- Type of Control / AppliancesMechanical
- Type of Control SettingsButton
- TypologyBuilt-in/Built-under
- Warranty Duration2
- Manufacturer Guarantee1 year
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 max. 625 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 70 dB dB*
- Push button control for extractor speeds and light
- 3 power levels
- 2 x 3W LED
- Single motor
- 2 removable metal grease filter cassettes
- Integrated hood
- Installation: Between Cupboards
- Push button control
- Mechanical
- Suitable for ducted or recirculating operation
- For recirculated extraction charcoal filter (accessory) needed
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 70 dB(A) re 1 pW
- Power rating: 256 W
- Light Intensity: 188 lux
- Colour Temperature: 2700 K
- Electrical cable length 1.5 m
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 68.4 kWh/year*
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 402-402 x 599 x 271 mm
- Dimensions recirculating (HxWxD): 402-402 x 599 x 271 mm
- Recirculating kit DWZ0IM0A0
Manufacturer | Bosch |
---|---|
Model Number | DEM66AC00B |
Max Output Air Extraction | 625 |
Max Output Recirculating Air | 416 |
Grease Filter Material | Washable aluminium |
Grease Filter Type | Kassette |
Number of Motors | 1 |
Sound Power Min Speed | 49 |
Sound Power Max Speed | 70 |
Noise Level | 70 |
Typology | Built-in/Built-under |
Operating Mode | Convertible |
Motor Location | Integrated motor in hood body |
Fluid Dynamic Efficiency | 25.4 |
Fluid Dynamic Efficiency Class | B |
Lighting Efficiency | 29.0 |
Lighting Efficiency Class | A |
Grease Filtering Efficiency | 76.0 |
Grease Filtering Efficiency Class | C |
Max Air Flow | 625 |
Min Air Flow | 256.0 |
Air Flow Boost | 0.0 |
Appliance Current (A) | 10 |
Appliance Voltage (V) | 220-240 |
Appliance Frequency (Hz) | 50; 60 |
Approval Certificates | CE |
Plug Type | GB plug |
Cord Length | 150 |
Number of Lights | 2 |
Warranty Duration | 2 |
No Return Air Flow Flap | Yes |
Energy Efficiency Class | B |
Type of Control / Appliances | Mechanical |
Type of Control Settings | Button |
Construction Type | Built-In |
Installation Type | Built-In |
