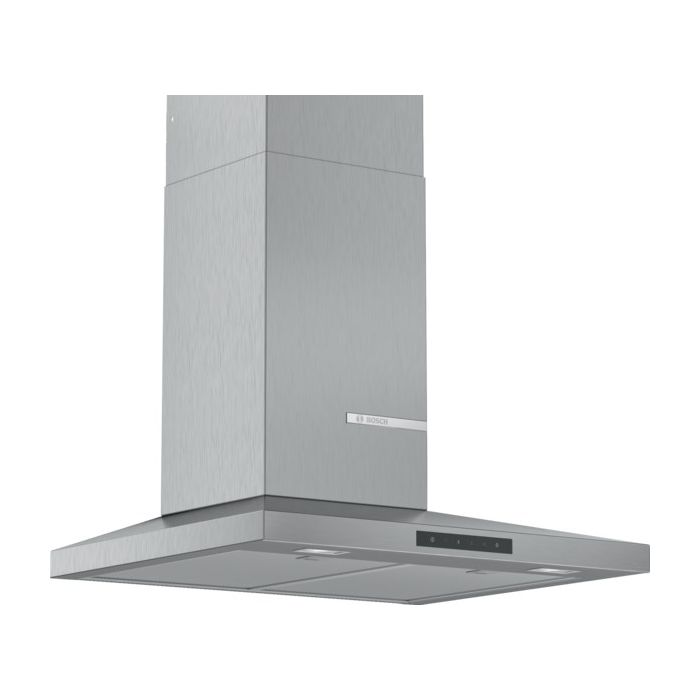

Bosch DWQ66DM50B, Wall-mounted cooker hood
£675.00
Out of Stock.
Please Contact Us
Please Contact Us
- Air Flow Boost645.0
- Appliance Current (A)10
- Appliance Frequency (Hz)50; 60
- Appliance Voltage (V)220-240
- Approval CertificatesCE, E17D UKCA marking, VDE
- Boost Position Air Extraction644
- Boost Position Output Recirculating441
- Chimney ColourStainless steel
- Chimney MaterialStainless steel
- Construction TypeBuilt-In
- Cord Length130
- Energy Efficiency ClassA
- Fluid Dynamic Efficiency30.6
- Fluid Dynamic Efficiency ClassA
- Grease Filter MaterialWashable aluminium
- Grease Filter TypeKassette
- Grease Filtering Efficiency87.0
- Grease Filtering Efficiency ClassB
- Height without Chimney94
- Installation TypeBuilt-In
- Lighting Efficiency69.1
- Lighting Efficiency ClassA
- Max Air Flow411
- Max Output Air Extraction411
- Max Output Recirculating Air337
- Min Air Flow258.7
- Motor LocationIntegrated motor in hood chimney
- Noise Level62
- Noise Level Boost Position70
- Number of Lights2
- Number of Motors1
- Operating ModeConvertible
- Plug TypeGB plug
- Sound Power Boost70
- Sound Power Max Speed62
- Sound Power Min Speed50
- Type of Control / AppliancesElectronic
- Type of Control SettingsLED;touch control
- Type of LightLED
- TypologyWall-mounted
- Warranty Duration2
- Manufacturer Guarantee1 year
Key performance features:
- Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use410m³/h
- Intensive644 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 62 dB dB*
- TouchControl with Electronic display
- Electronic display
- 3 power levels & intensive setting
- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)
- 2 removable metal grease filter cassettes
- Installation: wall
- Chimney extractor hood
- TouchControl
- Electronic control
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 644 m3/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use:62dB(A) re 1 pW
- Intensive:70 dB(A) re 1 pW
- Power rating: 220 W
- Light Intensity: 242 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 676-1006 x 600 x 500 mm
- Dimensions recirculating (HxWxD): 676-1116 x 600 x 500 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 744 x 600 x 500mm - mounting with outer chimney
- 874-1204 x 600 x 500 mm - mounting with telescopic chimney
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 41.7 kWh/year*
- Recirculating kit DHZ1225
| Manufacturer | Bosch |
|---|---|
| Model Number | DWQ66DM50B |
| Sound Power Boost | 70 |
| Noise Level Boost Position | 70 |
| Max Output Air Extraction | 411 |
| Boost Position Air Extraction | 644 |
| Max Output Recirculating Air | 337 |
| Boost Position Output Recirculating | 441 |
| Grease Filter Material | Washable aluminium |
| Grease Filter Type | Kassette |
| Number of Motors | 1 |
| Sound Power Min Speed | 50 |
| Sound Power Max Speed | 62 |
| Noise Level | 62 |
| Typology | Wall-mounted |
| Operating Mode | Convertible |
| Motor Location | Integrated motor in hood chimney |
| Fluid Dynamic Efficiency | 30.6 |
| Fluid Dynamic Efficiency Class | A |
| Lighting Efficiency | 69.1 |
| Lighting Efficiency Class | A |
| Grease Filtering Efficiency | 87.0 |
| Grease Filtering Efficiency Class | B |
| Max Air Flow | 411 |
| Min Air Flow | 258.7 |
| Air Flow Boost | 645.0 |
| Height without Chimney | 94 |
| Chimney Material | Stainless Steel |
| Appliance Current (A) | 10 |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Approval Certificates | CE, E17D UKCA marking, VDE |
| Plug Type | GB plug |
| Cord Length | 130 |
| Number of Lights | 2 |
| Warranty Duration | 2 |
| Chimney Colour | Stainless Steel |
| Energy Efficiency Class | A |
| Type of Control / Appliances | Electronic |
| Type of Control Settings | LED;touch control |
| Construction Type | Built-In |
| Installation Type | Built-In |
| Type of Light | LED |
| Is On Display | false |
| Is Soft Bundle | No |
| Expired Status | No |
